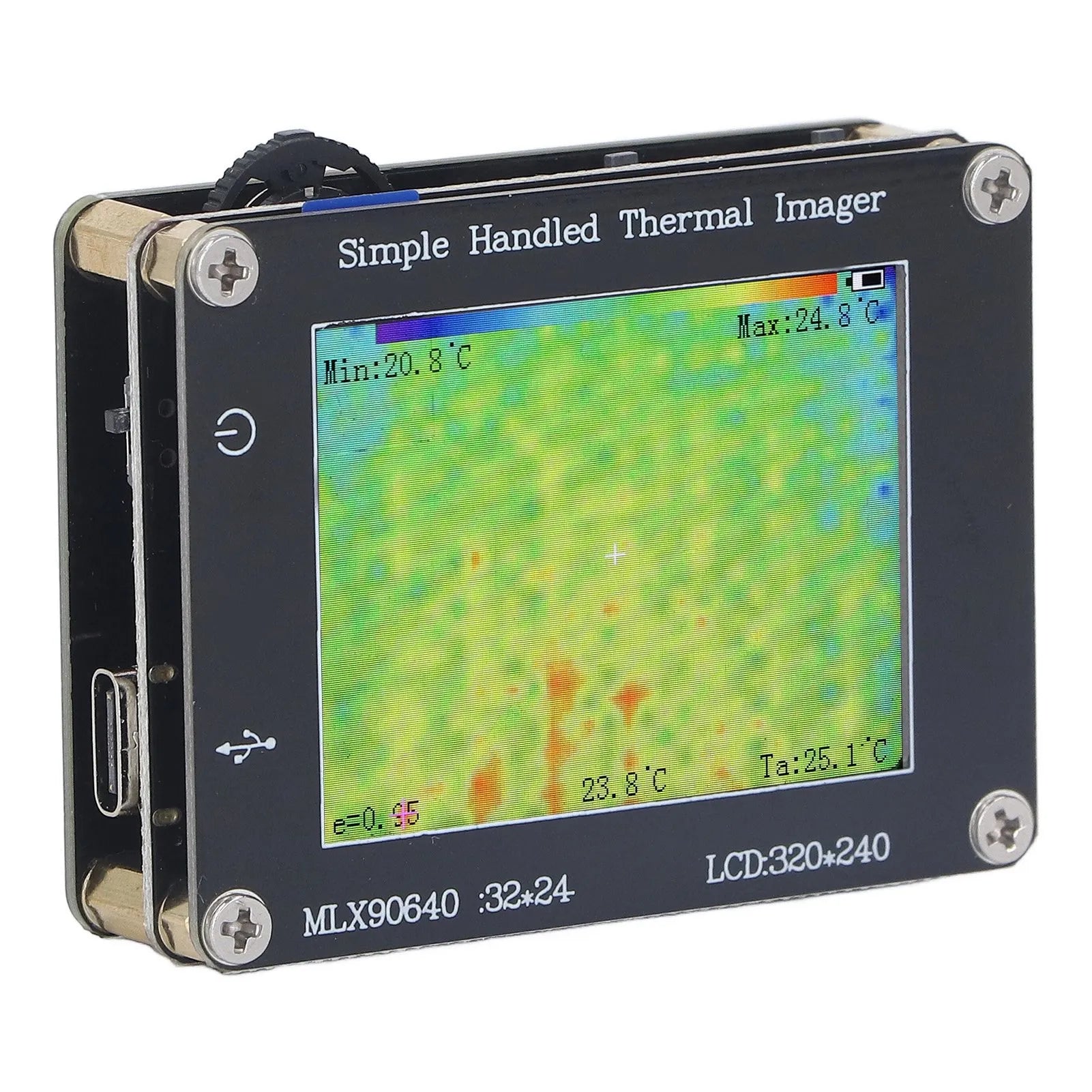

Multifunction Infrared Thermographic Camera with Wide Temp Range

Stay aware of temperature changes and spot hidden issues fast with this handheld multifunction infrared thermal imager. Designed for non-contact temperature monitoring, it features a high-sensitivity sensor, clear 2-inch screen, and wide temperature range from -40°C to 300°C. Whether you're checking electrical components, HVAC systems, building insulation, or industrial machinery, this compact device delivers reliable thermal imaging on the go. Lightweight and portable, it stores up to 100 images and connects easily to your computer or mobile phone for data transfer—making it a practical solution for professionals in maintenance, diagnostics, and inspection.

Key Features

• Measures temperatures from -40°C to 300°C

• High-accuracy non-contact thermal imaging

• 2-inch screen displays max, min, and center temperatures

• Stores up to 100 images with built-in flash memory

• Portable and lightweight for field use

• USB-C data transfer and 16MB built-in storage

• Durable epoxy shell protects internal components

• Ideal for home inspections, electronics repair, HVAC, and more

Specifications

• Sensor Type: MLX90640 ESF-BAB

• Sensor Resolution: 24 x 32 pixels

• Display: 2.0-inch LCD, 240 x 320 resolution

• Refresh Rate: 8Hz

• Measurement Accuracy: ±2°C

• Viewing Angle: 55° horizontal x 35° vertical

• Display Mode: Interpolation simulation

• Battery: Built-in 3.7V 600mAh rechargeable

• Interface: USB Type-C

• Internal Storage: 16MB (up to 100 images)

• Material: Epoxy resin board and PCB

Package Contents

• 1 x Infrared Thermal Imager

• 1 x USB Charging Cable

• 1 x Lens Cleaning Cloth

Helpful Tip
For best results, allow the device to capture an image for at least 15 seconds before saving.
