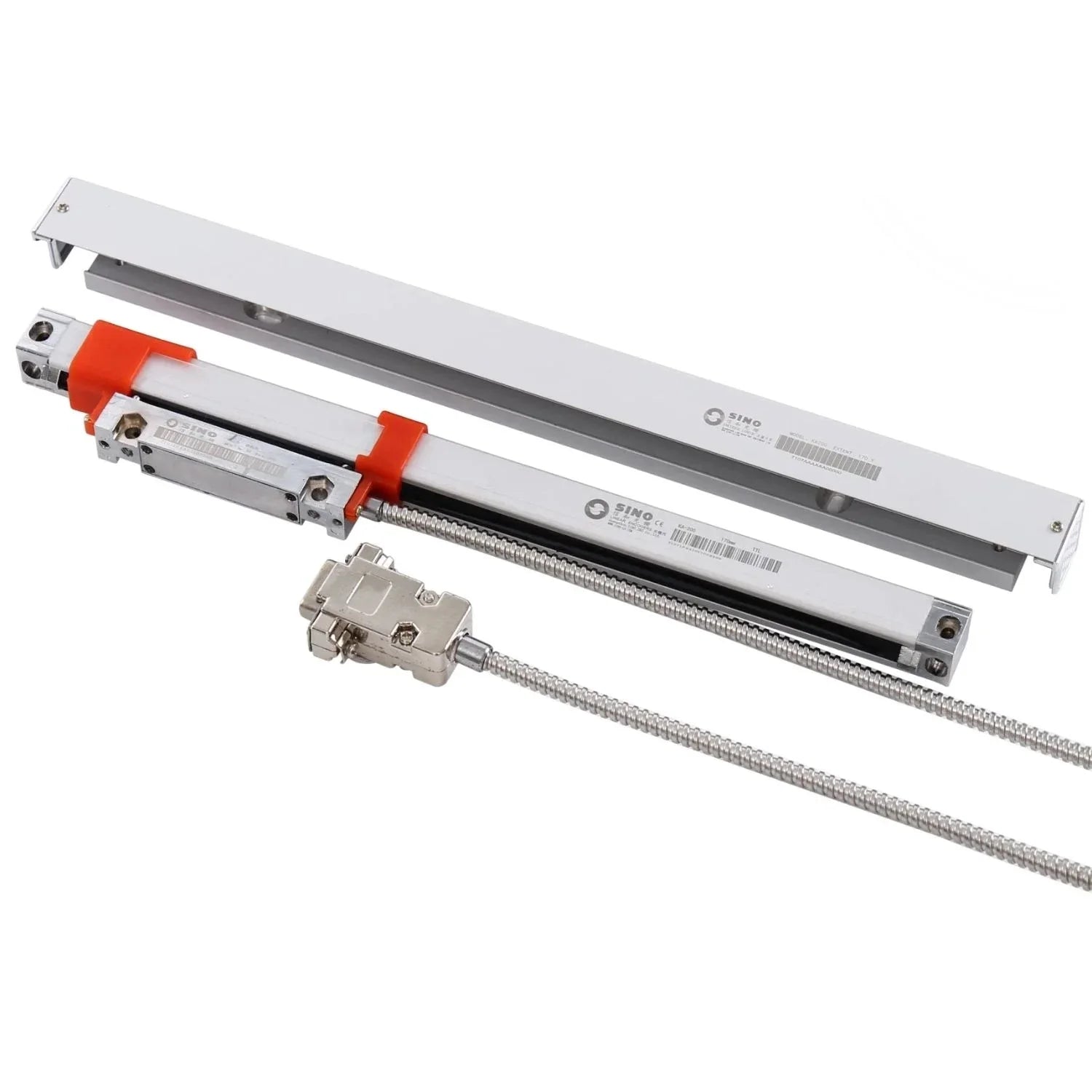

Miniature DRO Linear Ruler 70mm Travel, 5μm Resolution

Upgrade your precision measuring setup with this ultra-compact linear scale, designed specifically for installations with limited space. The KA-200 70mm travel variant offers high-resolution measurement at 0.005mm accuracy, making it an excellent solution for small milling machines, grinders, or custom DRO setups. Its slim 16mm x 16mm profile allows for flexible installation in tight areas without sacrificing durability or performance. Built for consistent, accurate readings and compatible with all standard Chinese DRO systems, this scale ensures a seamless integration into your existing tools or workstations.

Key Features:

• Ultra-compact design: Ideal for tight or narrow installation spaces

• High precision resolution: 0.005mm (5μm) for accurate readings

• Wide compatibility: Works with all China-standard DRO displays

• Durable construction: IP55 protection and laser-calibrated for stability

• TTL signal output: Ensures reliable digital communication

Specifications:

• Travel Length: 70mm

• Cross Section: 16mm x 16mm

• Resolution: 0.005mm (5μm)

• Output Signal: TTL

• Cable Length: 2 meters

• Installation Hole Distance: 173mm (Travel + 103mm)

• Overall Length: 165mm (Travel + 95mm)

• Bar Pitch: 0.02mm

• Power Supply: +5V DC ±5%, 80mA

• Reference Point: 1 per 50mm

• Max Measuring Speed: 60m/min

• Operating Temperature: 0–45°C

• Protection Level: IP55

• Connector Type: 9-pin

Package Contents:

• 1 x KA-200 Linear Scale (70mm travel)

• 1 x Protective Scale Cover

• 1 x Screw Bag

Note: This listing is for the 70mm travel variant of the KA-200 slim scale.
