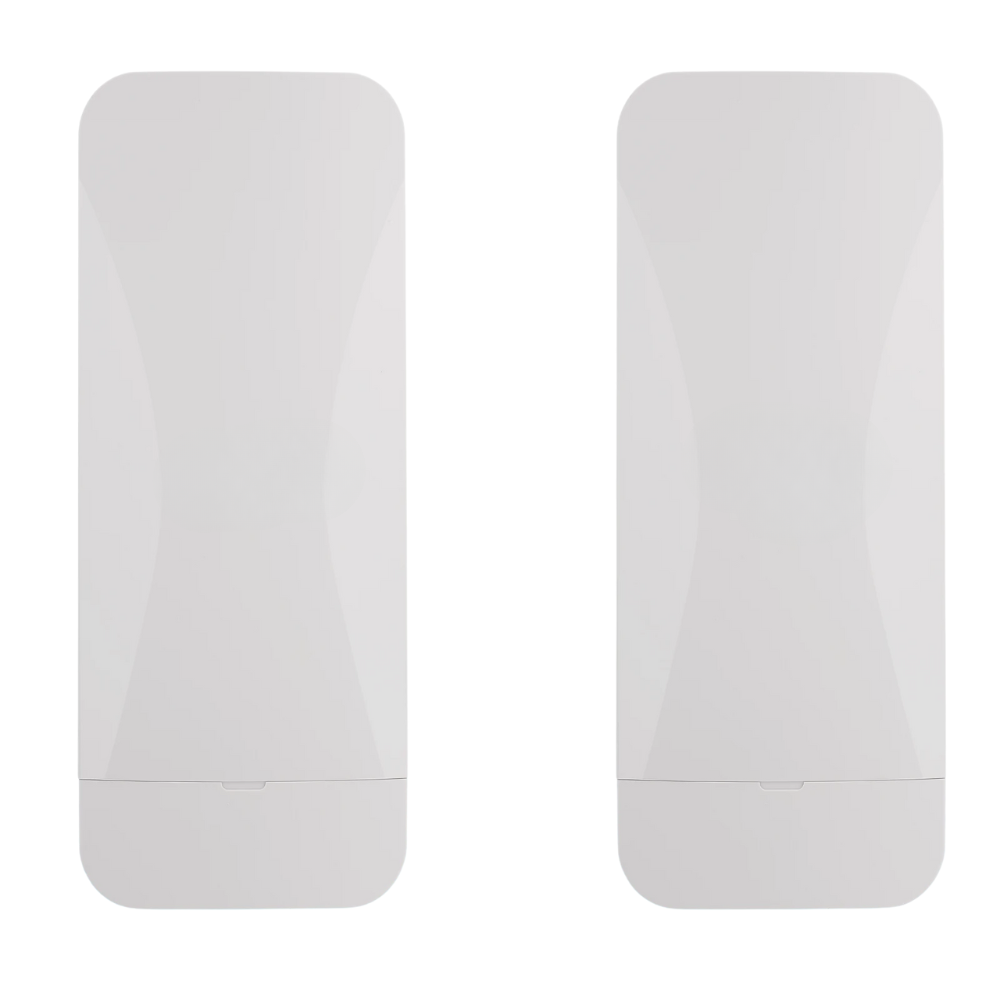

Dual LAN 5.8GHz Long Range Wireless Bridge IP65 Outdoor WiFi CPE with One-Click Pairing

This 5.8GHz wireless bridge is designed to deliver strong and stable outdoor WiFi over long distances up to 8KM. Featuring a built-in 18dBi directional antenna and IP65 weatherproof housing, it supports point-to-point and point-to-multipoint configurations for seamless outdoor networking. With speeds up to 867Mbps and intelligent channel selection, it's ideal for extending network access between buildings, cameras, or remote sites. Setup is easy with one-click pairing and multiple power options including PoE and DC.

Key Features:

• High-gain 18dBi directional antenna supports up to 8KM range

• Delivers up to 867Mbps on 5.8GHz band for high-speed data transmission

• Supports AP and Repeater modes for flexible deployment

• Weatherproof IP65 housing for reliable outdoor performance

• One-click pairing and automatic channel optimization for easy setup

Specifications:

• Frequency: 5.8GHz

• Max Speed: 867Mbps

• Antenna: Built-in 18dBi directional panel

• Ports: 1×10/100/1000Mbps WAN, 1×10/100/1000Mbps LAN

• Power: DC 12V / PoE 24V or 48V

• Operating Temp: -20°C to 55°C

• Storage Temp: -40°C to 70°C

• Humidity: 5%–95% (non-condensing)

• Protection Rating: IP65

• Working Modes: AP / Repeater

• CPU: QCA9563

• Flash: 16M | DDR2: 64M

Package Contents:

• 2 x Wireless CPE Units

• 2 x PoE Adapter

• 2 x Nylon Tie

• 1 x User Manual


Note:
Ensure clear line of sight for optimal performance. Suitable for outdoor use between buildings, for CCTV setups, or rural wireless coverage. Always match PoE adapter to power requirements listed.
