Digital Readout System with TTL Encoder, 1000mm Travel

Upgrade your milling or lathe operations with this high-precision 2-axis Digital Readout (DRO) Kit, designed for enhanced accuracy, efficiency, and ease of use. Featuring a large, easy-to-read display and two high-precision 5μm linear glass scales, this kit supports various machining applications including milling, grinding, drilling, and cutting. Engineered for professional performance, it includes advanced functions such as arc machining, inclined plane processing, and coordinate conversion. With strong resistance to interference, durable construction, and intuitive setup, it’s an essential tool for improving measurement reliability in industrial and workshop settings.

Key Features

• High-precision measurement: 5μm resolution for accurate machining

• Large clear display: Easy-to-read dual-axis digital screen

• Advanced machining functions: Arc, oblique, hole circle, datum storage

• Multi-machine compatibility: Ideal for milling, lathes, grinders, cutters

• Durable build: Aluminum alloy casing with dustproof and wear-resistant design

• Stable and interference-resistant: Strong power and signal shielding

• Customizable travel lengths: Supports scales from 50–1000mm

Specifications

• Axis: 2

• Resolution: 5μm

• Scale Model: NTS

• Signal Type: TTL

• Display Model: HS800-2P

• Input Voltage: AC 80–240V, 50/60Hz

• Scale Cable Length: 3 meters

• Application: Lathe, Milling, Grinder, Boring, Cutting

• Travel Range: 50mm to 1000mm

• Mounting Distance: Measuring length + 124mm

• Total Length: Measuring length + 140mm

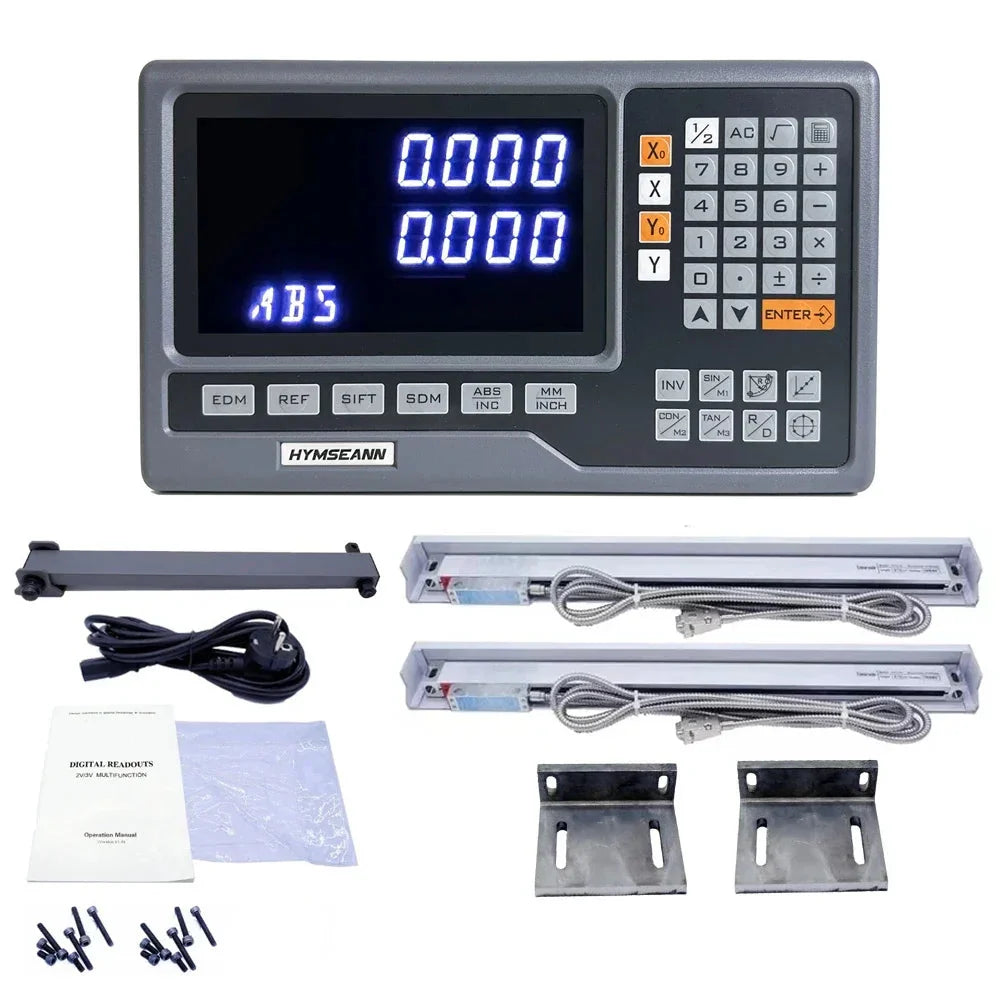

Package Contents

• 1 x Digital Readout Display (HS800-2P)

• 2 x Linear Glass Scales (custom lengths)

• 1 x Power Cable

• 1 x User Manual

• 1 x Mounting Arm

• 2 x Scale Covers

• 2 x L-Shaped Mounting Brackets

• 2 x Screw Kits

Note
Please specify the required travel lengths (L0) for both scales when placing your order. The kit supports any scale lengths from 50mm to 1000mm.
