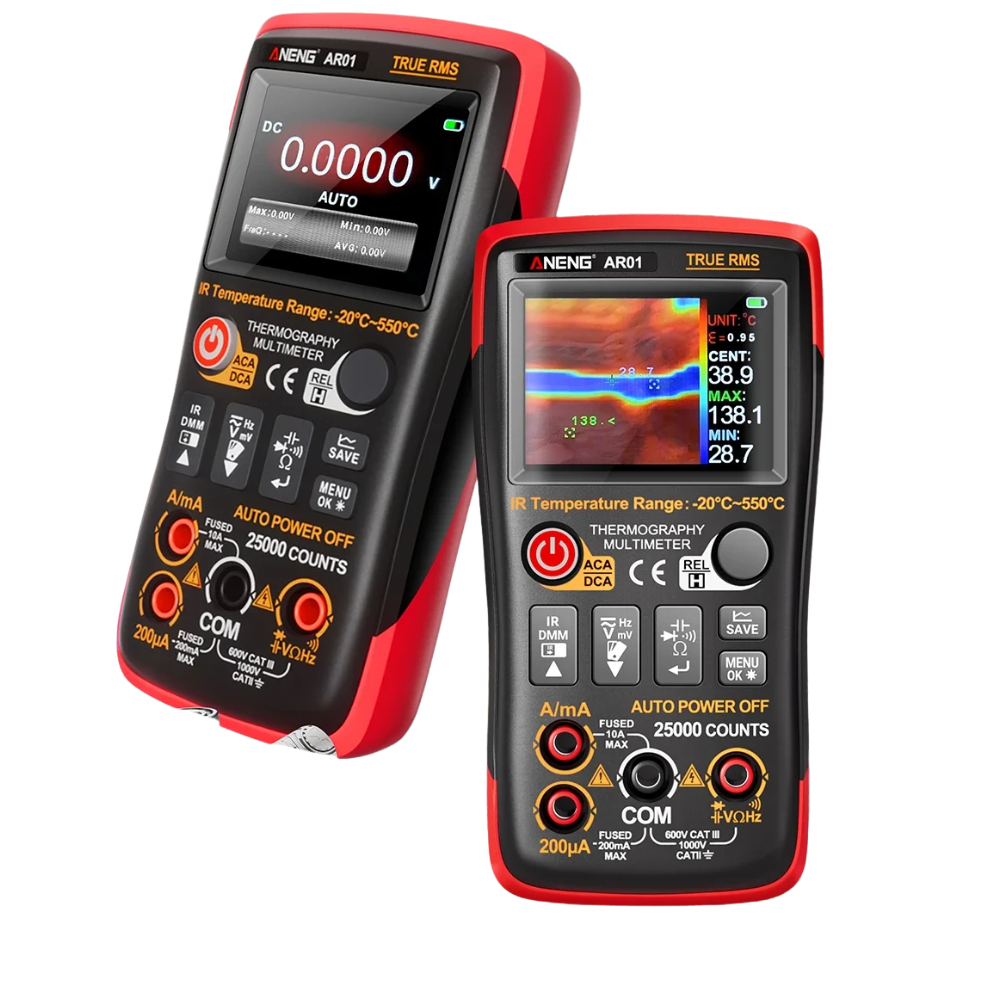

2-in-1 Thermal Imaging Multimeter – 1000V, 25000 Counts, USB-C Rechargeable, 2.4" TFT Display

This versatile 2-in-1 digital tool combines a high-resolution thermal imager with a professional-grade multimeter, making it an essential companion for electrical diagnostics and maintenance. Designed for precision and ease of use, the AR01 Multimeter features a 2.4-inch TFT display, smart data logging, and thermal image capture capabilities. Ideal for electricians, engineers, and hobbyists, this rechargeable, compact tester enables quick temperature scanning and accurate voltage, current, and resistance measurements — all in one portable device.

Key Features:

• Combines thermal imaging and multimeter in a compact 2-in-1 design

• High-definition 2.4" TFT screen with intuitive thermal and waveform display

• Measures up to 1000V DC, 750V AC, and 10A current with 25000-count resolution

• Supports resistance up to 250MΩ and capacitance up to 99.99mF

• Rechargeable 2000mAh lithium battery with USB Type-C charging

• Adjustable screen brightness and auto power-off timer

• Includes flashlight, data hold, diode test, and waveform capture functions

• Lightweight and portable – ideal for on-site diagnostics or bench testing

Specifications:

• Voltage Range: DC 0–1000V, AC 0–750V

• Current Range: DC/AC 0–10A

• Resistance Range: 0Ω–250MΩ

• Capacitance Range: 0nF–99.99mF

• Frequency Range: 0Hz–99.99kHz

• Max Display Count: 25000

• Display: 2.4" TFT, 320x240 resolution

• Operating Temperature: 0–40°C

• Battery: Built-in 2000mAh rechargeable lithium battery

• Charging: USB Type-C

• Functions: Data hold, diode test, flashlight, screenshot storage

• Material: ABS/TPE

• Weight: Approx. 200g

Package Contents:

• 1x AR01 Thermal Imaging Multimeter

• 1x USB Type-C Charging Cable

• 1x Pair of Test Leads

• 1x User Manual

Note:
Accessory quantities may vary based on variant selection. Confirm before ordering.
