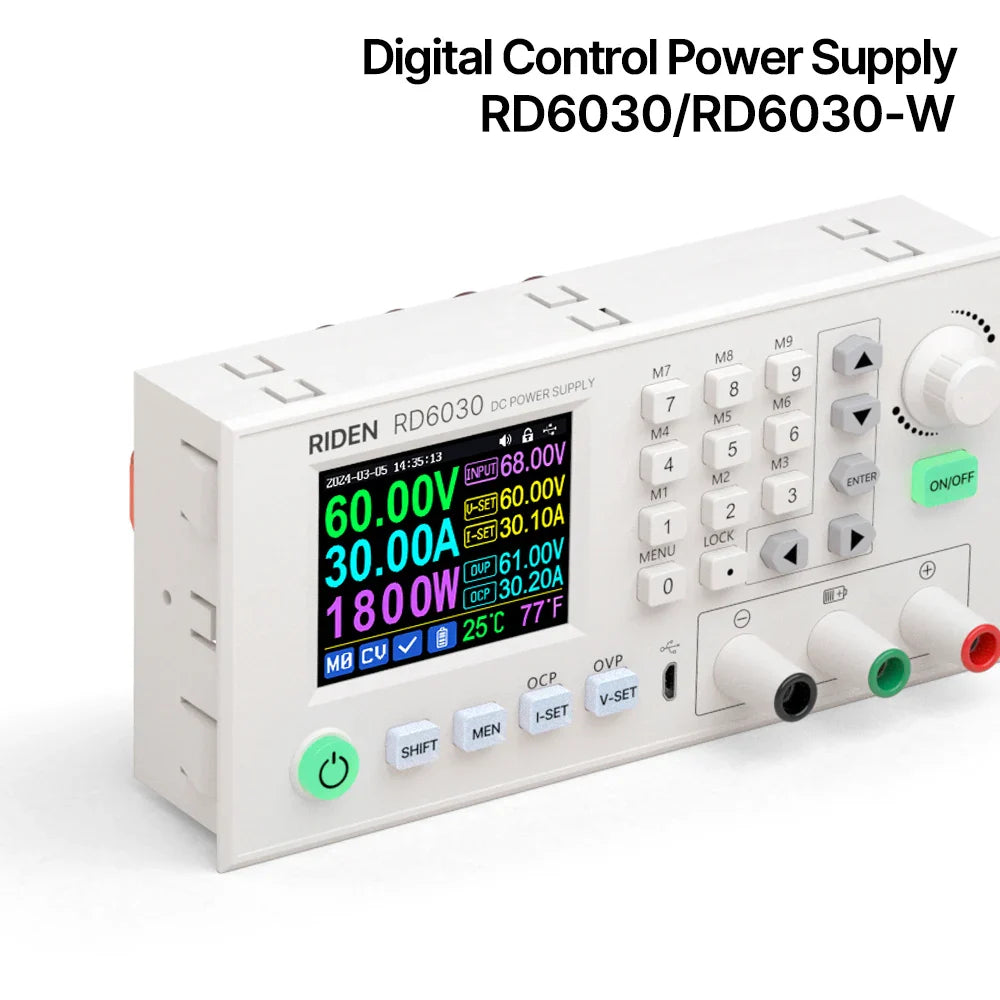

1800W DC Step-Down Power Supply Module with App Control

This 60V 30A DC adjustable power supply module delivers stable, high-performance power ideal for lab use, battery charging, and electronics testing. Equipped with a precise 2.4-inch color LCD and multiple display styles, it offers clear, customizable monitoring of voltage, current, and power. The module supports intelligent PC and smartphone app control, allowing remote adjustments and data tracking. Its advanced protections ensure safe operation, while firmware upgrades keep features up to date. Compact and efficient, it is a versatile power management tool for professional and hobbyist applications.

Key Features:

• High output: 60V voltage, 30A current, 1800W power

• 2.4-inch color LCD with 15 color options and 3 display styles

• Precise 4-digit measurement with 0.01V and 0.01A resolution

• Supports fine-tuning calibration for accurate results

• Intelligent PC and Bluetooth app control (Windows, Android, iOS)

• Multiple protection functions including over-voltage, reverse polarity, and over-temperature

• Firmware upgradeable for ongoing improvements

• High efficiency with low ripple and fast dynamic response

Specifications:

• Input voltage range: 7-70V

• Output voltage range: 0-60V

• Output current range: 0-30A

• Output power range: 0-1800W

• Voltage accuracy: ±(0.3%+3 digits)

• Current accuracy: ±(0.5%+5 digits)

• Ripple voltage: 50mV@15A, 90mV@30A (typical)

• Working temperature: -10°C to 40°C

• Cooling fan activates above 8A output or 45°C system temp

• Dimensions: 167 × 81 × 69 mm

• Weight: 736 g

Package Contents:

• 1 × DC Power Supply Module (RD6030-W)

Note: Power output depends on PSU selection and input voltage; check compatibility when choosing power supply units.
