1080p FPV Receiver Kit with Nano Camera and 9cm Cable

Unlock a new level of FPV clarity and control with this advanced HD VRX system bundled with the Nano Kit V3 (9cm). Designed for seamless integration with modern flight controllers, this kit delivers sharp 1080p/60FPS video, ultra-low latency of 22ms, and a reliable 4km transmission range. Paired with a lightweight Nano camera and compact VTX, it’s ideal for drones where every gram and millisecond matters. HDMI output allows for real-time video monitoring, while Canvas Mode compatibility gives you full OSD control through your favorite firmware. This setup is built to deliver precision flight visuals in even the most demanding FPV environments.

Key Features:

• 1080p/60FPS HD Streaming: Crisp, real-time visuals with H.265 encoding

• Ultra Low Latency: Just 22ms for fast, responsive flight feedback

• Compact Nano Camera: Lightweight and high-quality for small drone builds

• HDMI Output Support: Connects directly to monitors for live display

• Canvas Mode OSD: Full integration with Betaflight, INAV, and KISS systems

• 4km Max Transmission Range: Stable signal over long distances

• Built-in Recording: Capture flight footage directly at 1080p or 720p

Specifications:

VRX Module

• Output Resolution: 1080p60fps, 720p100fps, 720p60fps

• Communication Frequency: 5.725–5.850GHz

• Input Voltage: 7–21V (2S–5S)

• Interface: HDMI, microSD card slot, DC5.5×2.1mm

• Max SD Card Support: 256GB

• Weight: 83g

• Dimensions: 114×55×22mm

• Average Latency: 22ms

• System: Avatar HD

Nano Camera V3 (9cm Cable)

• Image Sensor: 1/2.7"

• Resolutions: 1080p/60fps, 720p/120fps, 720p/60fps

• Lens: 2.1mm, FOV: 170°, Aperture: F2.0

• Min. Illumination: 0.001Lux

• Shutter: Rolling

• Dimensions: 14×14×17mm

• Weight: 3.5g

• Coaxial Cable: 90mm

VTX Module

• Mounting Holes: 25.5×25.5mm

• Dimensions: 33×33×9.5mm

• Weight: 16g

• Channels: 8

• Storage: 8G built-in

• Power Input: 6V–25.2V

• Antennas: 2 (IPEX)

• Supported Systems: Betaflight

• OSD Support: Canvas Mode

Antenna (Red Bird)

• Polarization: LHCP

• Bandwidth: 5.6GHz–6.0GHz

• Gain: 1.9dBi

• Connector: RP-SMA

• Dimensions: H24.8mm × R15.3mm

• Weight: 4.2g

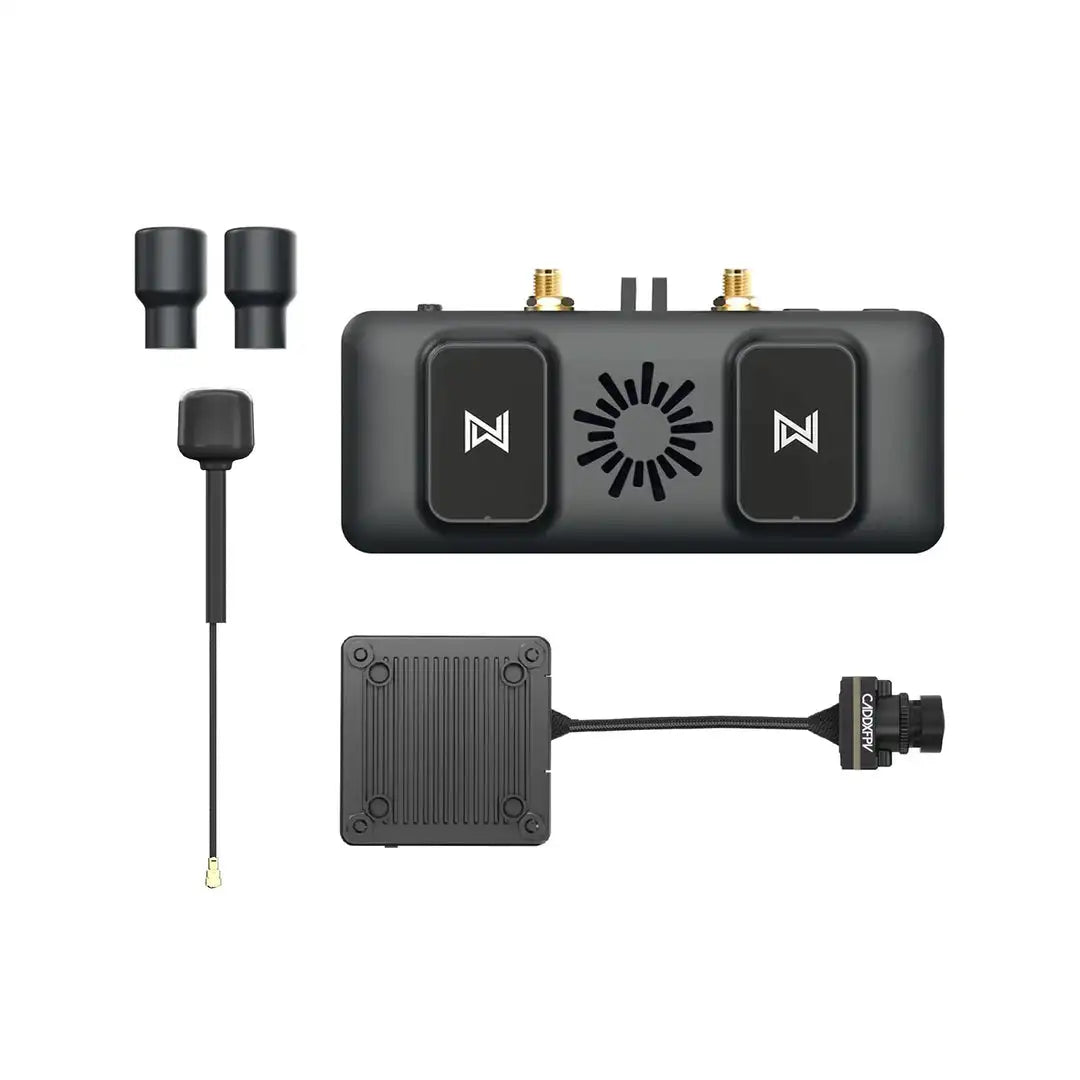

Package Contents:

• 1 × HD VRX

• 2 × Red Bird Antennas

• 1 × HDMI Cable

• 1 × 2-in-1 DC Power Cable

• 1 × Nano Kit V3 (9cm)

• 1 × 4 Pin USB Cable

• 1 × 6 Pin Power Cable

• 2 × M2×3/4/5mm Screws

• 2 × M1.2×1.5mm Screws

• 1 × 14-19mm Bracket

Note:
This variant includes the Nano Kit V3 with a 9cm coaxial cable, ideal for compact drone builds requiring lightweight, high-resolution FPV setups.
