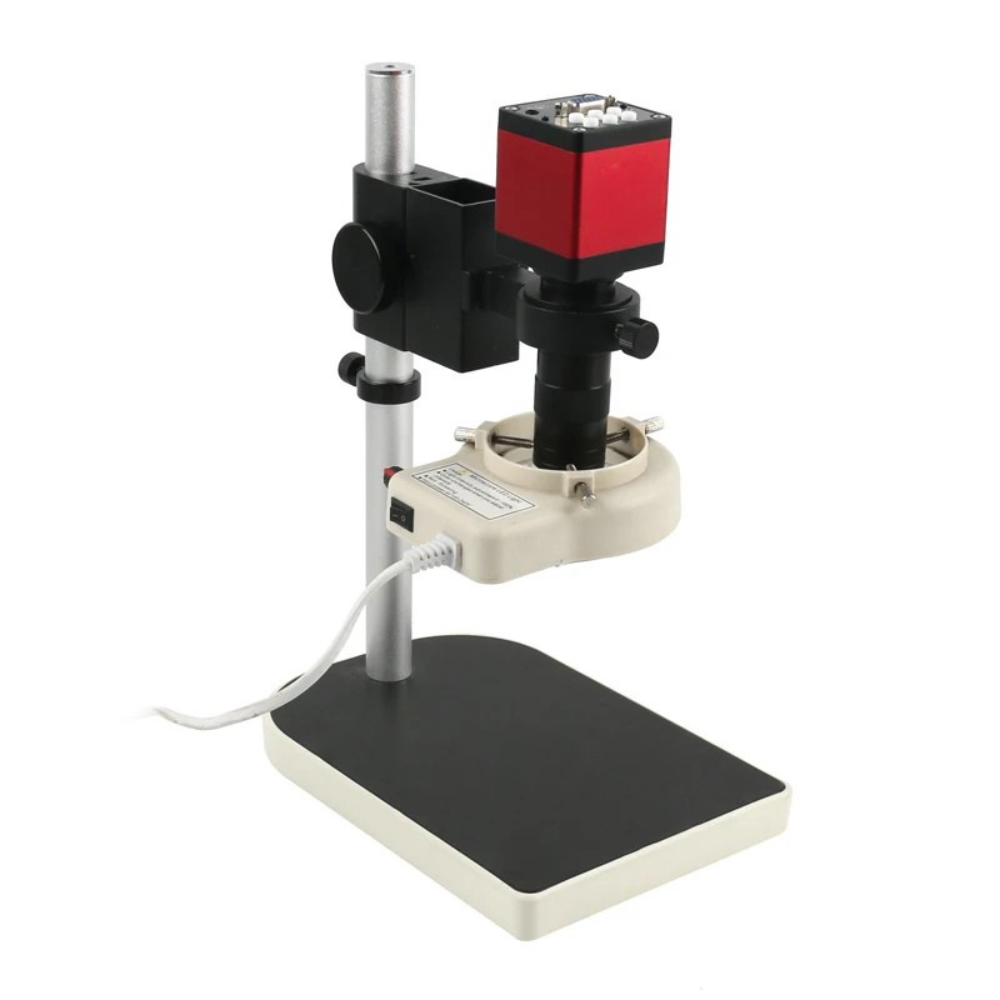

1080P 300X Electronic Microscope for PCB Soldering & Repair Work

Upgrade your electronics and PCB inspection process with this high-performance 300X HDMI/VGA Digital Microscope Camera. Designed for soldering and repair professionals, this electronic microscope delivers full HD 1080p resolution and a powerful zoom range up to 300X on display. Featuring a precision 130X C-mount lens, integrated 56 LED ring light, and dual HDMI/VGA output, it offers clear, detailed imaging for inspecting fine components. Compatible with monitors, TVs, or projectors, it allows hands-free operation with remote control support and multilingual on-screen menus. Built with durable aluminum alloy housing and enhanced digital zoom, it ensures long-term reliability and accurate observation at a comfortable working distance.

Key Features:

• 300X Maximum Magnification: Up to 300X zoom on screen for precision soldering and repair

• Dual Output Support: Connects to HDMI or VGA monitors, projectors, or TVs

• 130X C-Mount Lens: High clarity zoom lens with 70–220mm working distance

• 1080P HD Resolution: Crisp imaging with 60FPS smooth video output

• 56 LED Adjustable Ring Light: Intense, focused lighting with variable brightness control

• Remote Control Functionality: Operate exposure, zoom, white balance and more remotely

• Multilingual Menu Options: Includes English, French, Spanish, German, and others

• Sturdy Aluminum Build: CNC-milled body for durability and heat resistance

Specifications:

• Magnification Range: Approx. 10–300X on display

• Image Sensor: 1/3" Sony IMX323 CMOS

• Lens Zoom Ratio: 6.5:1 continuous zoom

• Lens Adapter Options: 0.5X / 1X / 0.35X

• Working Distance: 90mm–100mm

• Video Resolution (HDMI/VGA): 1920×1080 @ 60FPS

• Digital Zoom: 1X–4X

• Crosshair Functions: Adjustable color, thickness, and position (32 lines max)

• White Balance & Exposure: Auto/manual, RGB adjustable, 1–9 levels

• Lighting: 56 bright white LEDs with adjustable intensity

• Camera Interface: C/CS mount, 25mm

• Power Input: DC 12V/1A

• Ring Light Power: 100–240V, 50–60Hz

• Housing Material: CNC-machined aluminum alloy

• Lens Size: 245mm (L) × 50mm (DIA)

• Language Support: 9 languages including English, French, Spanish, Japanese

Package Contents:

• 1 x HDMI/VGA Digital Microscope Camera

• 1 x 130X C-Mount Zoom Lens

• 1 x Table Stand

• 1 x 56 LED Adjustable Ring Light

• 1 x Power Supply Adapter

Note:
This listing is for the 300X variant, offering maximum magnification and shortest working distance for ultra-precise inspection tasks.
